ECOFILM SET Underfloor Heating Element 500mm - 3Meters

Save £24.31

Price:
Sale price£56.72 Regular price£81.03

Tax included Shipping calculated at checkout

Description

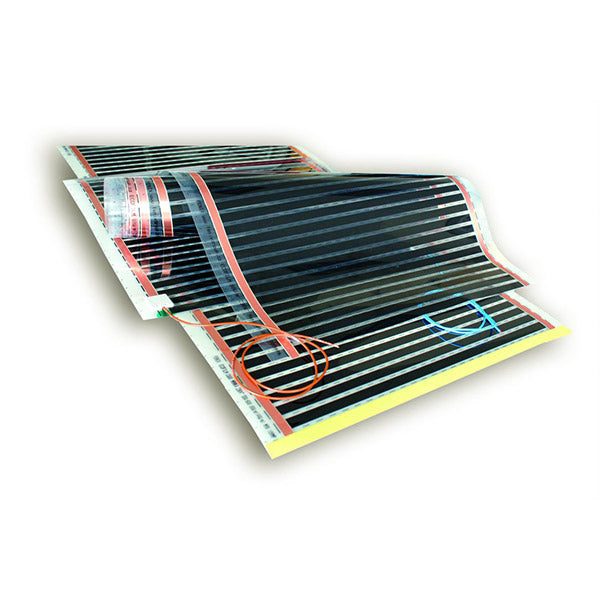

ECOFILMSET Underfloor Heating Elements offer simple and fast installation, with no need for self levelling compound.

The set is available in three different widths with standard lengths up to 10m. The element lengths can be reduced on site if necessary and are supplied as standard with 5m “cold tails”. Available in two standard power dissipations: 130 Watt for internal living areas and 160 Watts for conservatory use.

ECOFILMSET is NOT designed for use in wet areas such as bathrooms or shower rooms.

Features

  • Dry installation: no self levelling compound required
  • Suitable for most laminate and engineered hardwood floors
  • Extremely low build height: less than 7mm

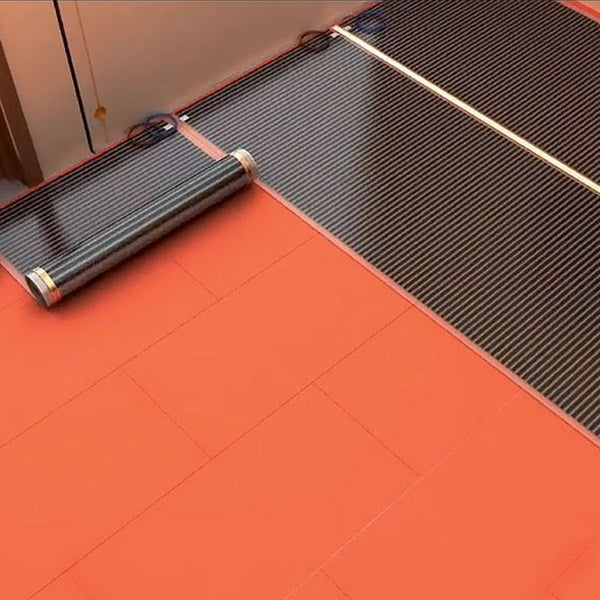

  • Quick installation: roll out the elements & connect pre-wired elements
  • Two heat outputs: 130W/m² and 160W/m² for conservatory use
  • Suitable for carpet & vinyl floors when used with ECOMAX-DUO

Specification

  • Construction: Carbon based flexible heating element
  • Operating Voltage: 230V, 50Hz
  • Output Rating: 130W/m2 in the 500mm wide
  • Available In 3 Widths: 300mm, 500mm & 1000mm for max coverage
  • Element Length: 2.0m to 10.0m in 0.5m increments
  • Cold Tail Lengths: 5m


Available Sizes & Output (500mm Width, 130W/m² Output)
Length (m)
Output (W)
2.0
122
2.5
153
3.0
183
3.5
214
4.0
244
4.5
275
5.0
306
5.5
336
6.0
367
6.5
397
7.0
428
7.5
458
8.0
489
8.5
519
9.0
550
9.5
580
10.0
611


If you require more information or prices on different sizes please call in and find out more.

ECOFILM SET Installation Guide

ECOFILM Brochure

Video Installation

PLEASE ALLOW 1 - 2 WORKING FOR ITEM TO ARRIVE (SUBJECT TO AVAVIBLILTY)
