FuseBox 36 Module 29 Way Duplex RCBO Consumer Unit + 100A Main Switch, T2 SPD

Save £216.04

Price:
Sale price£199.43 Regular price£415.47

Tax included Shipping calculated at checkout

Description

FuseBox F2029MX 29 Way Duplex RCBO Consumer Unit + Surge Protection

Overview

The FuseBox F2029MX duplex consumer unit features 29 usable ways over two rows. It is supplied with 100A Main Switch Incomer, Type 2 Surge Protection with 32A MCB, and a 32mm tails clamp.

As with all of the FuseBox T2 Surge Protected consumer units, the F2029MX has ample space internally for installing both the mini and standard height RCBOs.

Additional features include captive screws on the front cover, round knockouts on all four sides along with 2 large rectangular knockouts on the rear.

This consumer unit is supplied with an installation pack which includes a busbar, an icon label pack, and a grommet strip.

Key Features

  • 29 usable ways
  • Duplex/Double stacked consumer unit
  • 100A main switch incomer
  • T2 surge protection & 32A MCB
  • 32mm tails clamp included

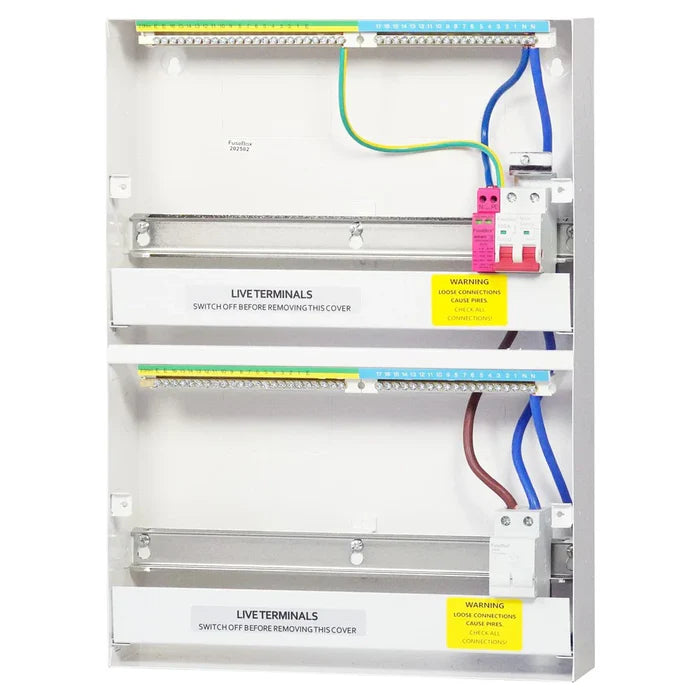

  • Earth and neutral terminal bars at the top
  • Removable and raised DIN rail
  • Round knock-outs on all faces
  • Identification label pack
  • Captive front cover screws

Additional Information

  • Width 345mm x Height 512mm x Depth 113mm
  • Flush fit using the AFMF18 Flush Mounting Frame
  • IP20XC
  • BS EN61439-3
  • RAL 9001 powder-coated finish
