FuseBox 20 Way (10/10) Dual Tariff Consumer Unit + 2 x 100A Main Switch

Save £148.61

Price:
Sale price£137.17 Regular price£285.78

Tax included Shipping calculated at checkout

Description

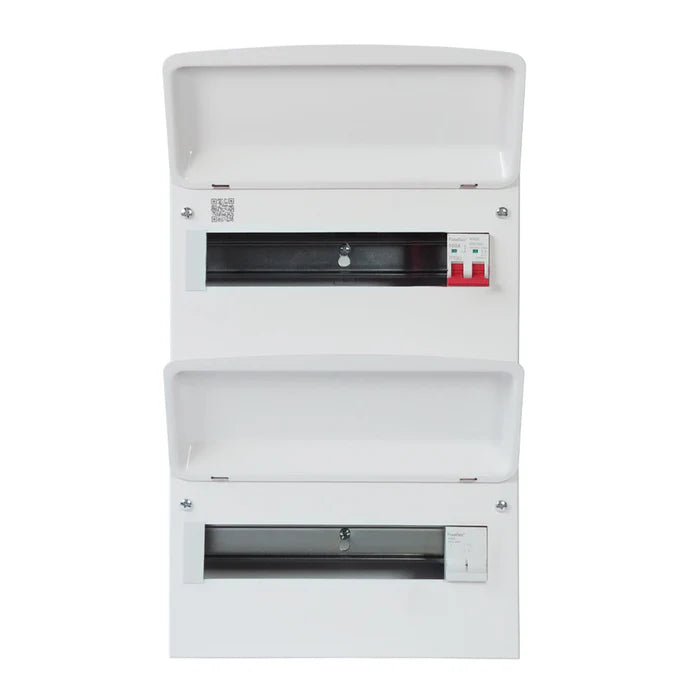

FuseBox F2020MDT 20 Way Dual Tariff Consumer Unit

The FuseBox F2020MDT is supplied complete with busbar, din rail and two 100a Main Switches, offering 20 usable ways split into two banks of 10 ways. Fully amendment 3 compliant metal enclosure and supplied with all you need to fit.

Additional features include captive screws on the front cover, round knockouts on all four sides along with rectangular knockouts on the rear.

This consumer unit comes with an installation pack which includes a busbar, an icon label pack, and a grommet strip.

Key Features

  • 20 way board split into two 10 way banks
  • Additional ways to add a Surge Protection Device
  • Supplied with two100A main switches, busbar and din rail
  • Earth and neutral terminal bars at the top
  • Removable and raised DIN rail
  • Round knock-outs on all faces
  • Identification label pack
  • Captive front cover screws
  • Amendment 3 non-combustible, metal enclosure

Additional Information

  • Width 300mm x Height 508mm x Depth 116mm
  • IP20XC
  • BS EN61439-3
  • RAL 9001 powder-coated finish
